    Sternum

    Manubrium – bone that is trapezoidal in shape, makes up the superior aspect of the sternum.

    Jugular notch – concave notches on either side of the superior aspect of the manubrium, for articulation with the clavicles.

    Corpus or body – flat, rectangular bone making up the major portion of the sternum. The lateral aspects contain the notches for the true ribs, called the costal notches.

    Xiphoid process – variably shaped bone found at the inferior aspect of the corpus. Process may fuse late in life to the corpus.

    Clavicle

    Sternal end – rounded end, articulates with manubrium.

    Acromial end – flat end, articulates with scapula.

    Conoid tuberosity – muscle attachment located on the inferior aspect of the shaft, pointing posteriorly.

    Ribs

    Head, Neck, Tubercle, Shaft, and Costal groove.

    Scapulae

    Ventral surface, Dorsal surface, Spine, Coracoid process, Acromion, Glenoid fossa, Axillary margin, Medial angle, and Vertebral margin.

    Screenshot (139).png

    Manubrium. Left anterior aspect, Right posterior aspect.

    Screenshot (142).png

    Sternum and Xyphoid Process. Left anterior aspect, Right posterior aspect.

    Screenshot (143).png

    Screenshot (144).png

    Clavicle. Left side. Top superior and Bottom inferior.

    Screenshot (145).png

    First Rib. Left superior and Right inferior.

    Screenshot (146).png

    Second Rib. Left inferior and Right superior.

    Screenshot (147).png

    Typical Rib. Left inferior and Right superior.

    Screenshot (148).png

    Eleventh Rib. Left posterior view and Left superior view.

    Screenshot (149).png

    Screenshot (150).png

    Twelfth Rib. Top shows anterior view and Bottom shows posterior view.

    Screenshot (151).png

    Scapula. Left side. Top anterior and Bottom posterior.

    Screenshot (152).png

    Screenshot (153).png

    Scapula. Top lateral Bottom superior.

    Screenshot (154).png

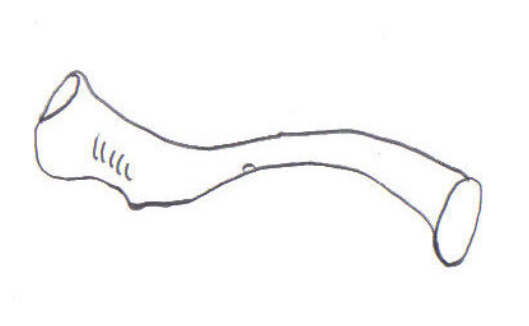

    Clavicle

    Screenshot (155).png

    Sternum

    Screenshot (156).png

    Scapula

    Screenshot (157).png

    Ribs
